 HP4016A High SPL Piezo  Buzzer

HP4016A High SPL Piezo Buzzer

  • Product description: HP4016A High SPL Piezo Buzzer,100dB piezo buzzer,security alarm buzzer. application used for alarm buzzer,Underground garage automatic alarm device .
  • INQUIRY

Piezo Audio Transducer HP4016A

Transducer Buzzer Datasheet:
Pin termina  Type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 40 x16mm, Worked with 9V p-p 3.4KHz ,Output 95dB at 10cm

Type

UNIT

HP4016A

*Min. Sound Output at10cm

dB

100

Rated Voltage

Vp-p

9

Operating Voltage

Vp-p

6~12

Resonant Frequency

Hz

3400±500

*Max. Current Consumption

mA

15

Capacitance at 1,000HZ

pF

15000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

12

Value applying at rated voltage

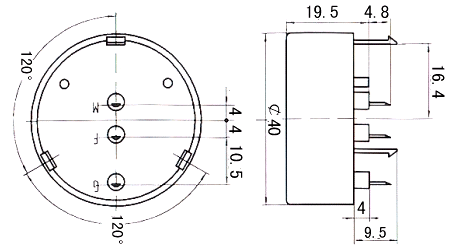

DIMENSIONS     Unit:mm     Tolerance:±0.5
