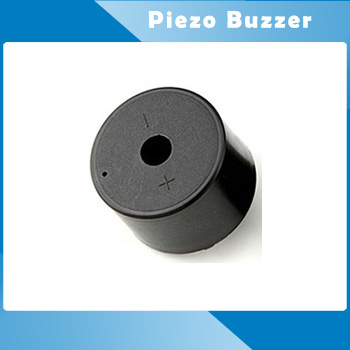

HP3020AX Piezoelectric Buzzer

HP3020AX Piezoelectric Buzzer

  • Product description: Piezoelectric Buzzer HP3020AX ,apply for industrial alarm ,air condition . Usually the Rated Voltage is 3-20 V,any special request can be customized .
  • INQUIRY

Piezo Buzzer, Piezoelectric Buzzer HP3020X

Buzzer Datasheet:
Pin termina  Type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 30mm Heigh 20.mm Worked with 12V DC .Output 3.5K Hz 90dB at 10cm

Type

UNIT

HP3020AX

HP3020BX

*Min. Sound Output at10cm

dB

90/10cm

85/30cm

Rated Voltage

VDC

12

12

Operating Voltage

VDC

3~20

3~16

Resonant Frequency

Hz

3500±500

3500±500

*Max. Current Consumption

mA

10

15

Tone Nature


Continuous

Pulse 1-5Hz

Operating Temperature

°C

-20～+70

Storage Temperature

°C

-30～+80

Weight

g

10

Value applying at rated voltage

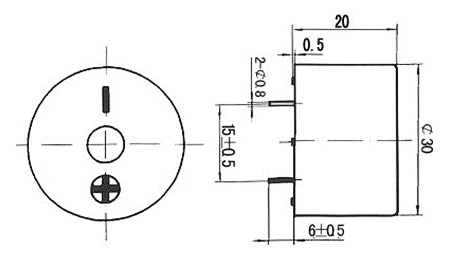

DIMENSIONS     Unit:mm     Tolerance:±0.5
